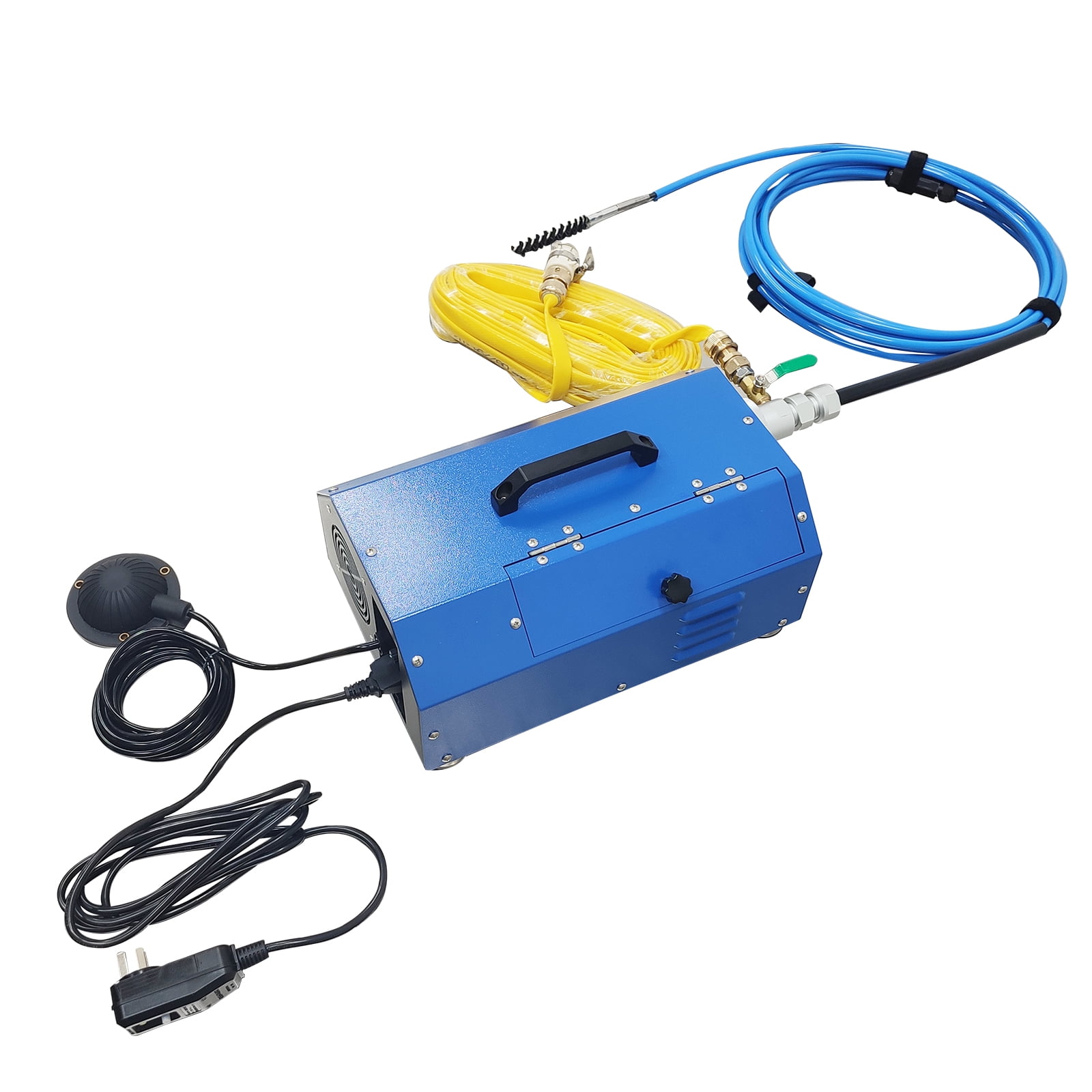

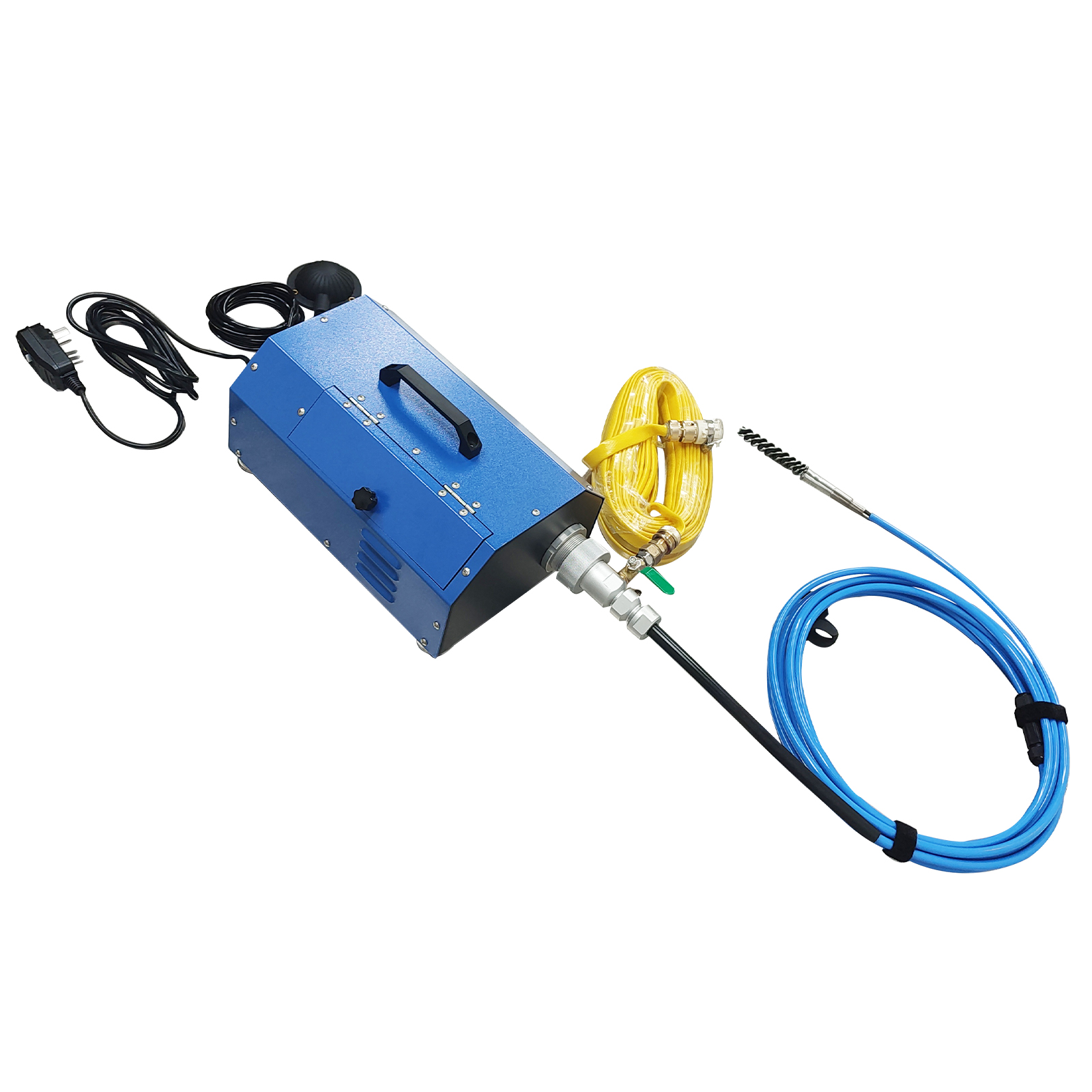

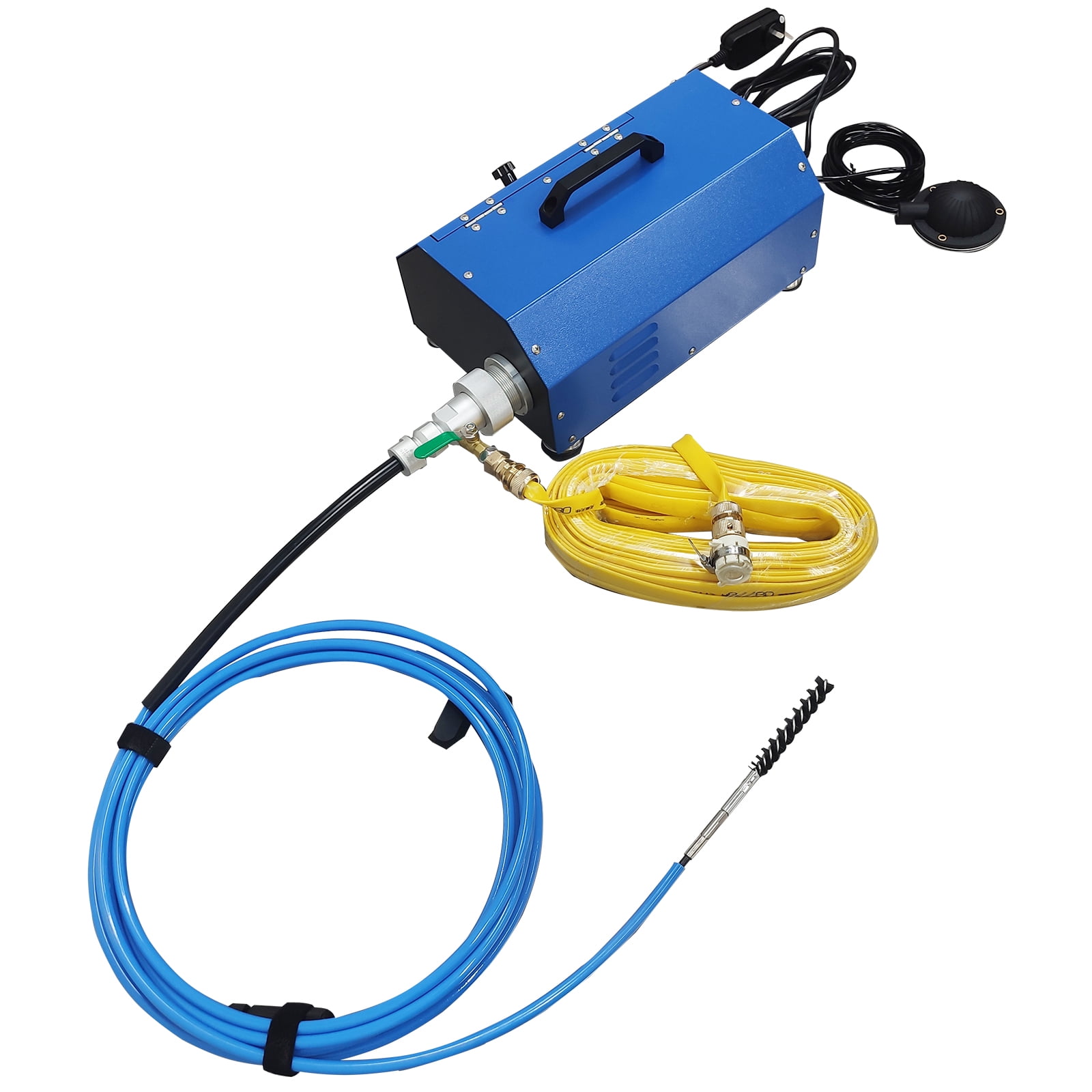

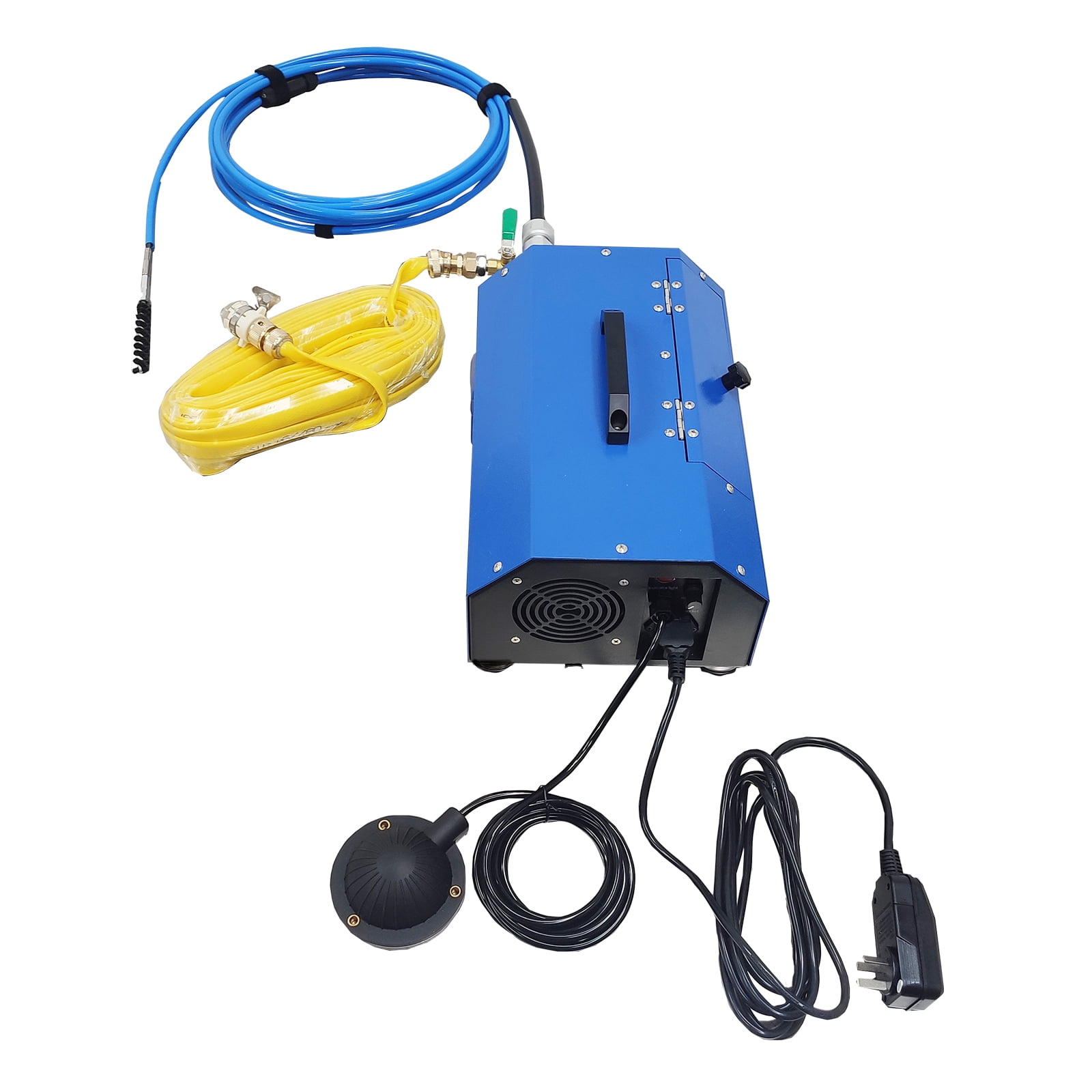

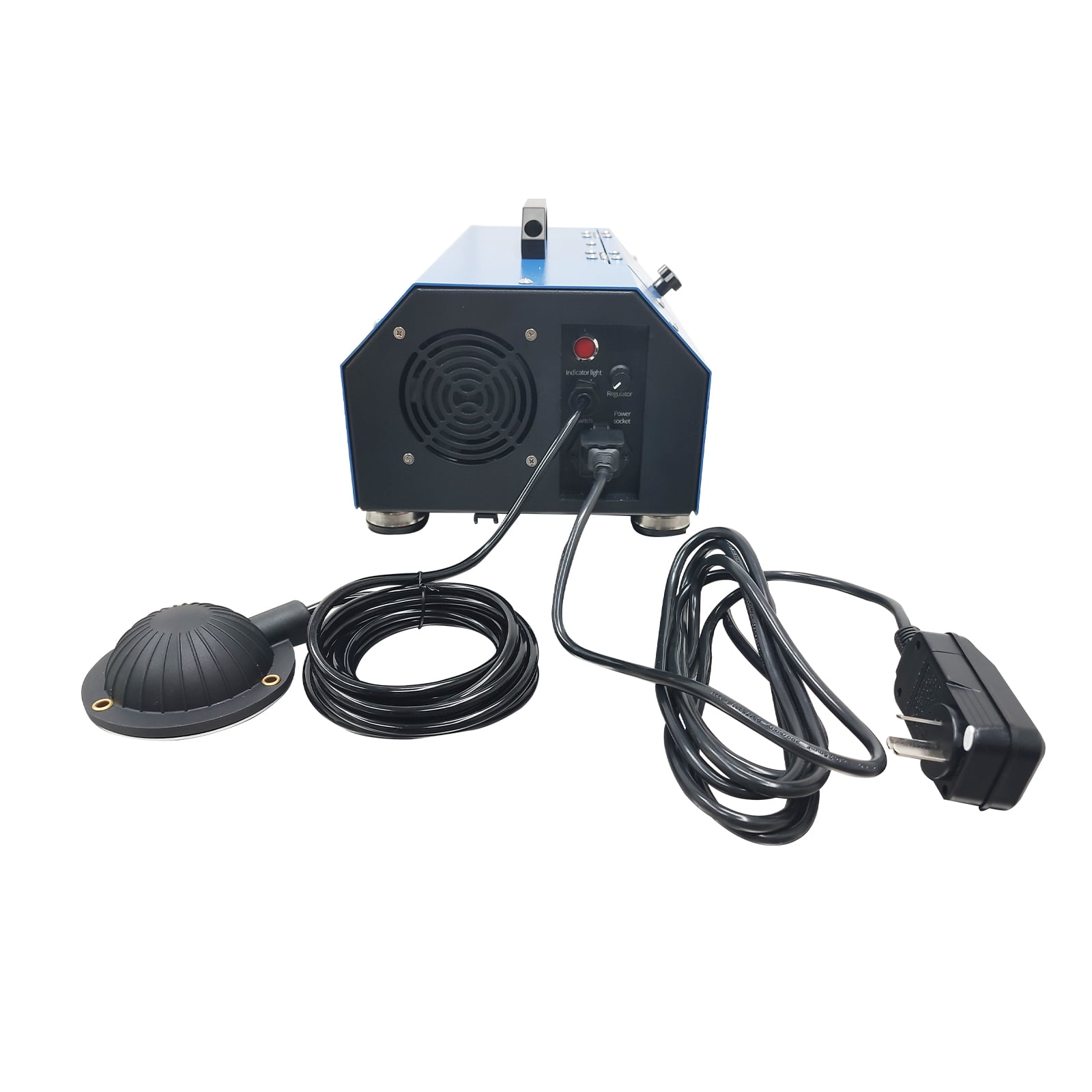

Condenser Pipeline Cleaning Machine 220V/110V Heat Exchanger Tube Cleaner Machine

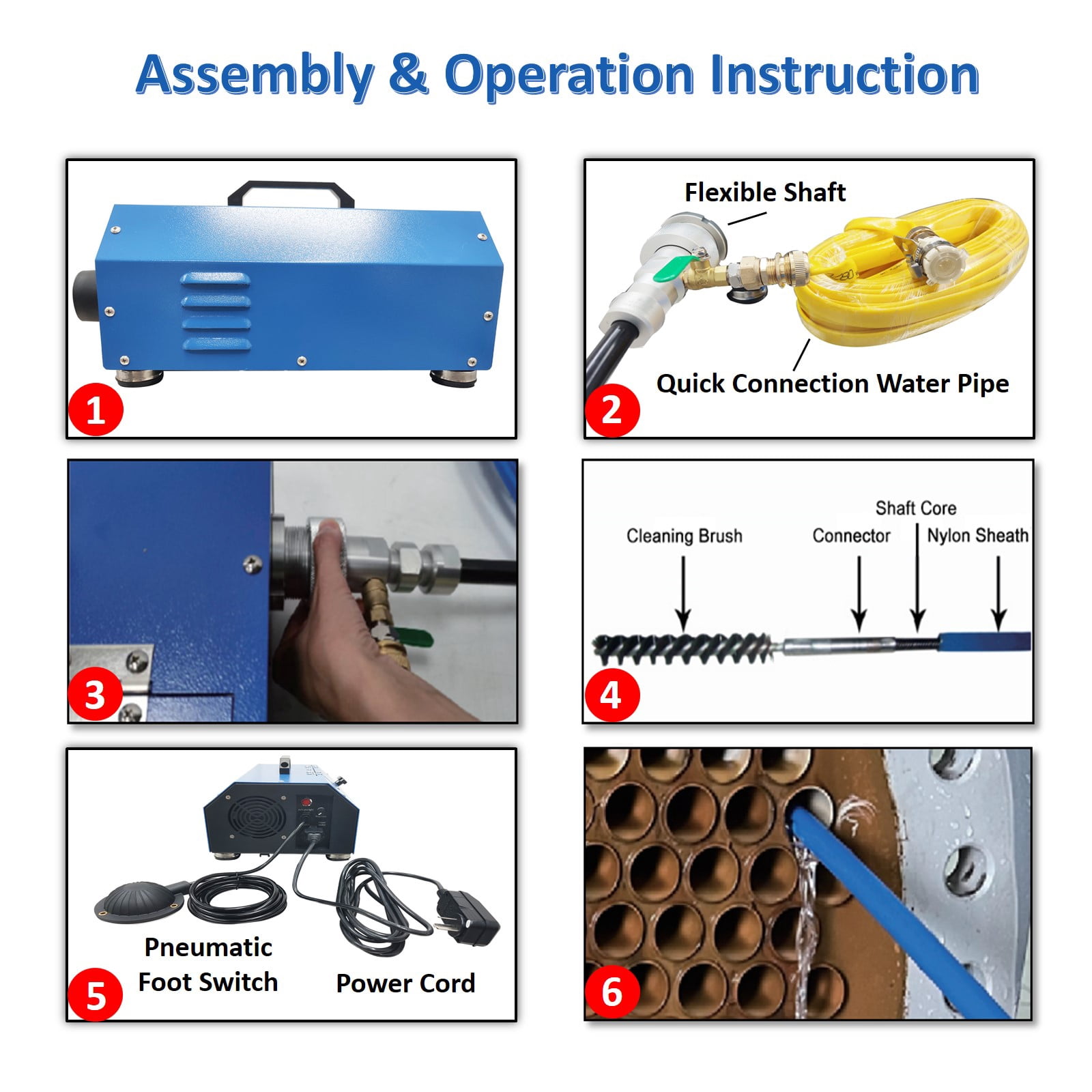

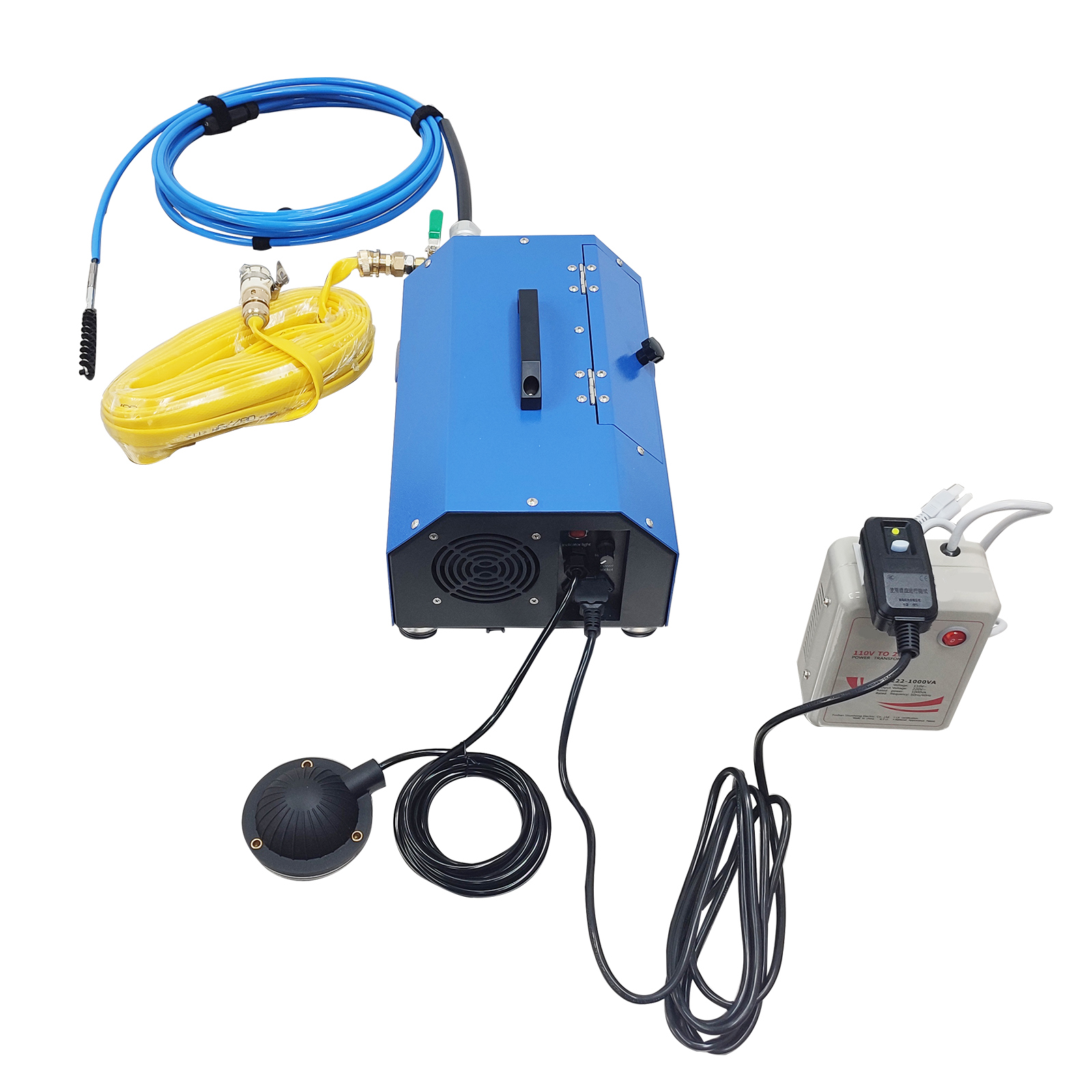

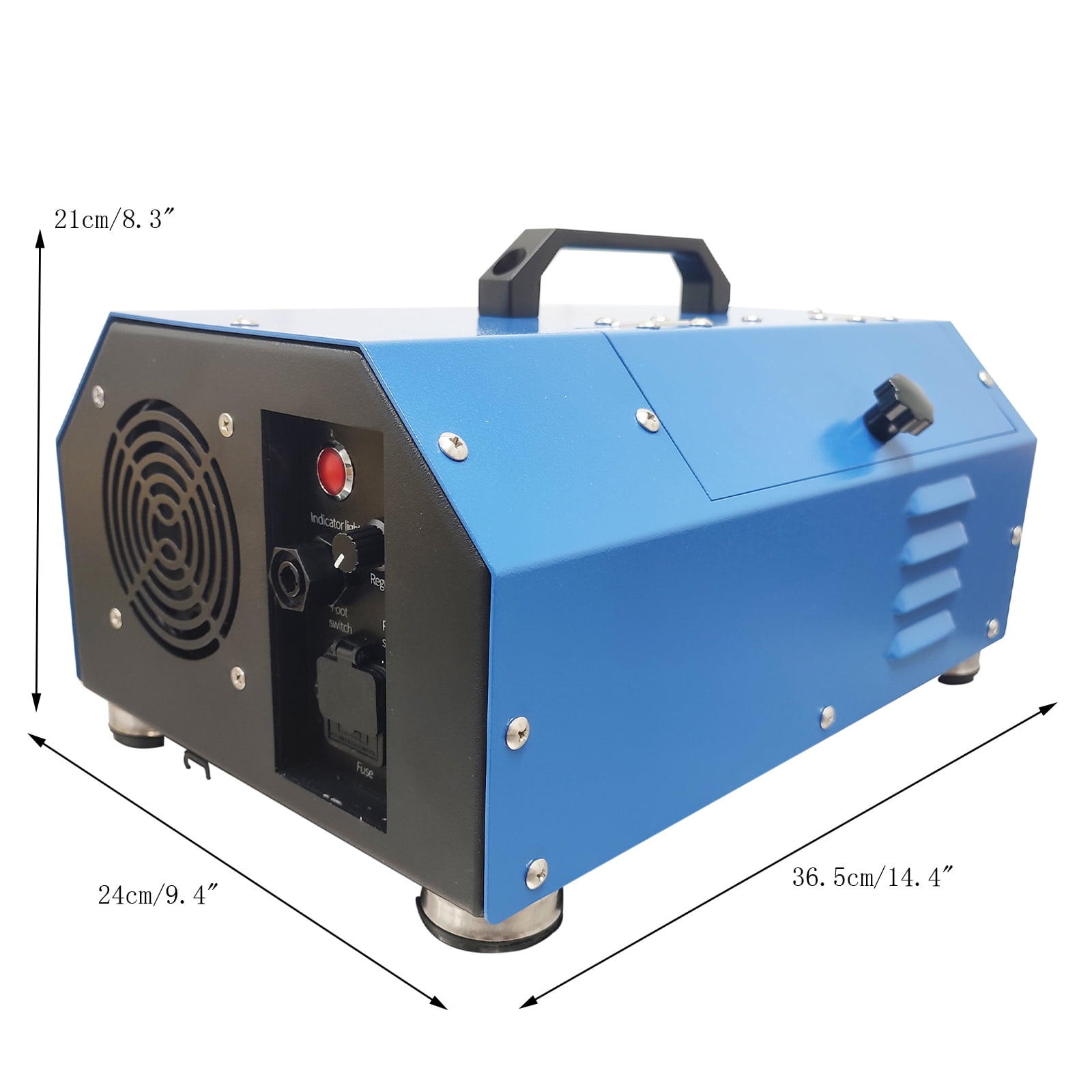

Introduction:<br> The condenser pipeline cleaning machine is a special device for cleaning away the dirt inside pipe bundles of condensers of central air conditioners. Silt, scale, rust residues and other impurities on the pipe walls are cleaned away through the brush rotating at high speed and the rinsing water, therefore the heat exchange efficiency is guaranteed, and the heat exchange efficiency reduction and system pressure rise caused by dirt accumulation are avoided.<br><br> Product Parameters<br> Model: 022830<br> Motor: 370W<br> Overload protection: 15A<br> Weight of main machine: 10kg<br> Power voltage: 220V<br> (A 110V transformer is given as a present. If your power supply is 110V, you can connect the machine to the transformer and then connect the transformer to your 110V power supply.)<br> Use temperature: 0-40˚C<br> External size: 365*240*210mm (14.4*9.4*8.3 inch)<br> Rotating speed: 0-2800r/min<br> Applicable pipe diameter: 15-18mm (0.6-0.7 inch)<br> Brush: Nylon brush * 10 pcs * 15.9mm (0.6 inch)<br><br> Attention<br> 1. The flexible shaft should be stretched completely before powering on the machine, otherwise the mechanical core inside the shaft core will be twisted off, and the customers need to purchase accessories at their own expenses for replacing the damaged accessories.<br> 2. When the machine is not used for a long time, please pull out the flexible shaft, and apply oil to the flexible shaft so as to maintain it and prevent the shaft core from rusting.<br> 3. When the machine is powered on and works, do not touch the transmission device with hands to avoid injuries.<br><br> Operation Method<br> Correct installation, use and maintenance of equipment are important links for guaranteeing normal operation of the mechanical equipment, and therefore please be sure to carefully assemble and use the equipment in strict accordance with the following installation and use steps.<br> Step 1. Place the machine on the construction site where water is not prone to accumulation.<br> Step 2. Connect the quick connection water pipe to the water inlet of the flexible shaft, and directly connect the other end to the tap water.<br> Step 3. Connect the power end of the flexible shaft to the main machine, tighten it with a large nut, and please note that the power end connector should be kept dry and resistant to rust.<br> Step 4. Choose a cleaning brush with the size slightly smaller than the internal diameter of the pipeline to be cleaned, connect it to the other end of the flexible shaft and tighten it with a wrench.<br> Step 5. Connect the pneumatic foot switch and the electric leakage protection power wire to the positions marked on the machine, and plug the power wire. Please note that the power wire must be connected to the socket with the ground wire. The electric leakage plug should be pressed to detect its flexibility when the machine is used again after a long time.<br> Step 6. Insert the cleaning brush into the pipeline, open the faucet, then tread on the foot switch, and the machine can work. A rotating speed regulator is arranged on the panel of the machine, different rotating speeds can be adjusted according to the demands of working conditions, and the cleaning speed can be improved.<br><br> Item Number (022830):<br> 1 x Condenser Pipeline Cleaning Machine 220V

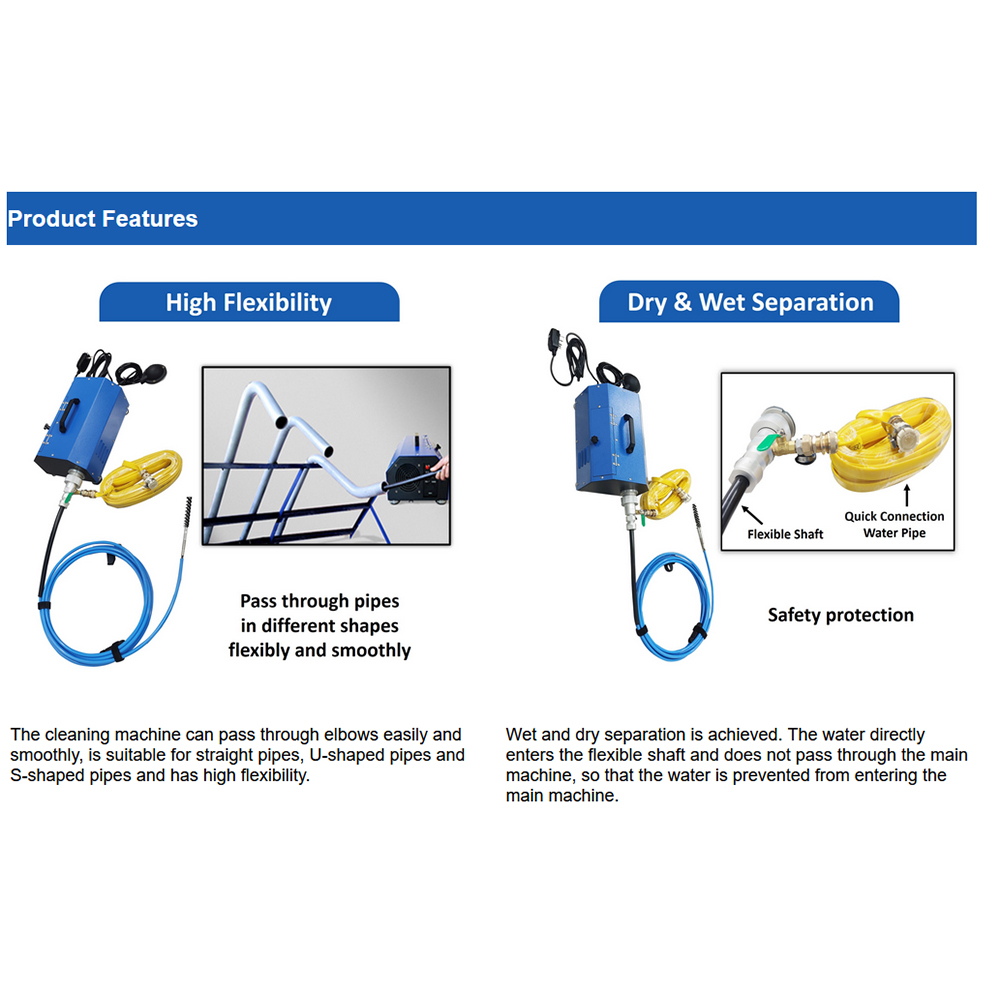

• The cleaning machine can pass through elbows easily and smoothly, is suitable for straight pipes, U-shaped pipes and S-shaped pipes and has high flexibility.
• Wet and dry separation is achieved. The water directly enters the flexible shaft and does not pass through the main machine, so that the water is prevented from entering the main machine.

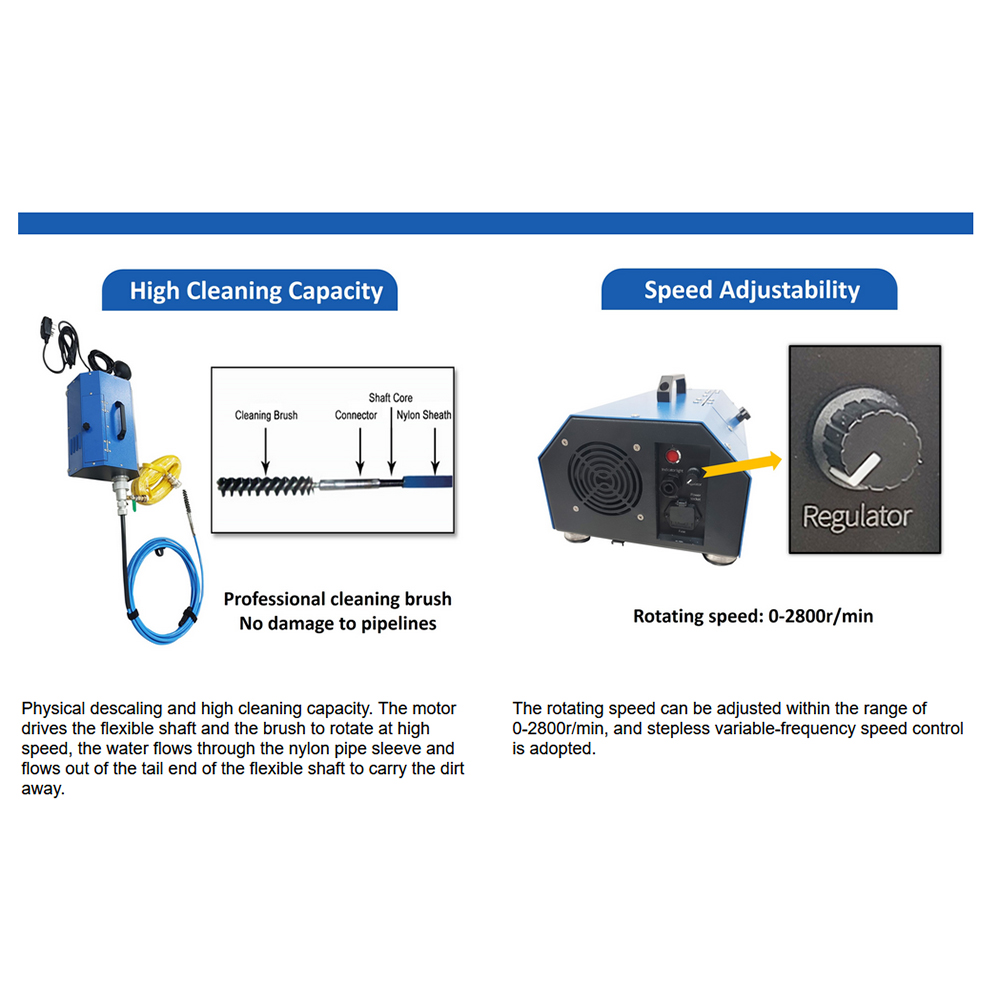

• Physical descaling and high cleaning capacity. The motor drives the flexible shaft and the brush to rotate at high speed, the water flows through the nylon pipe sleeve and flows out of the tail end of the flexible shaft to carry the dirt away.
• The rotating speed can be adjusted within the range of 0-2800r/min, and stepless variable-frequency speed control is adopted.

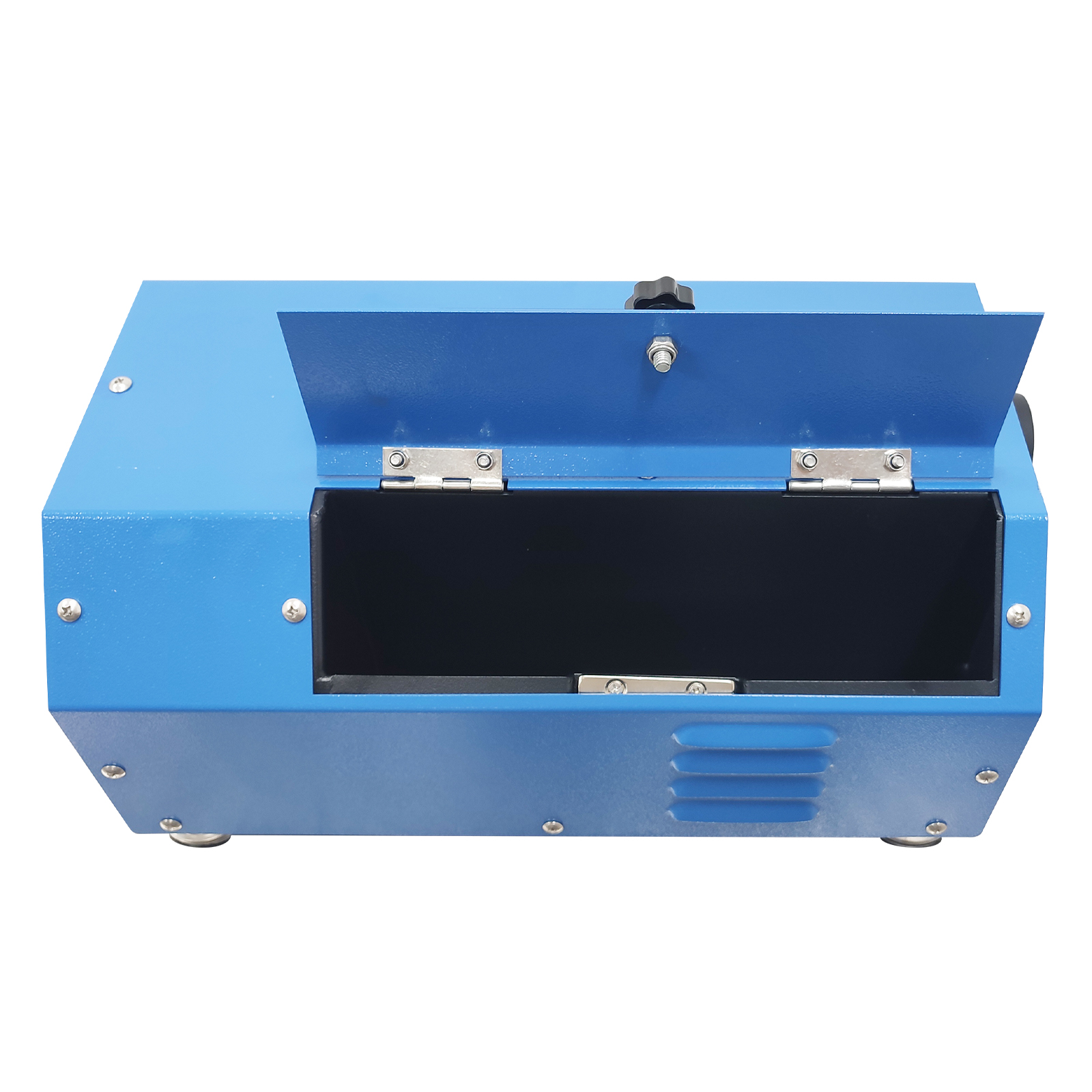

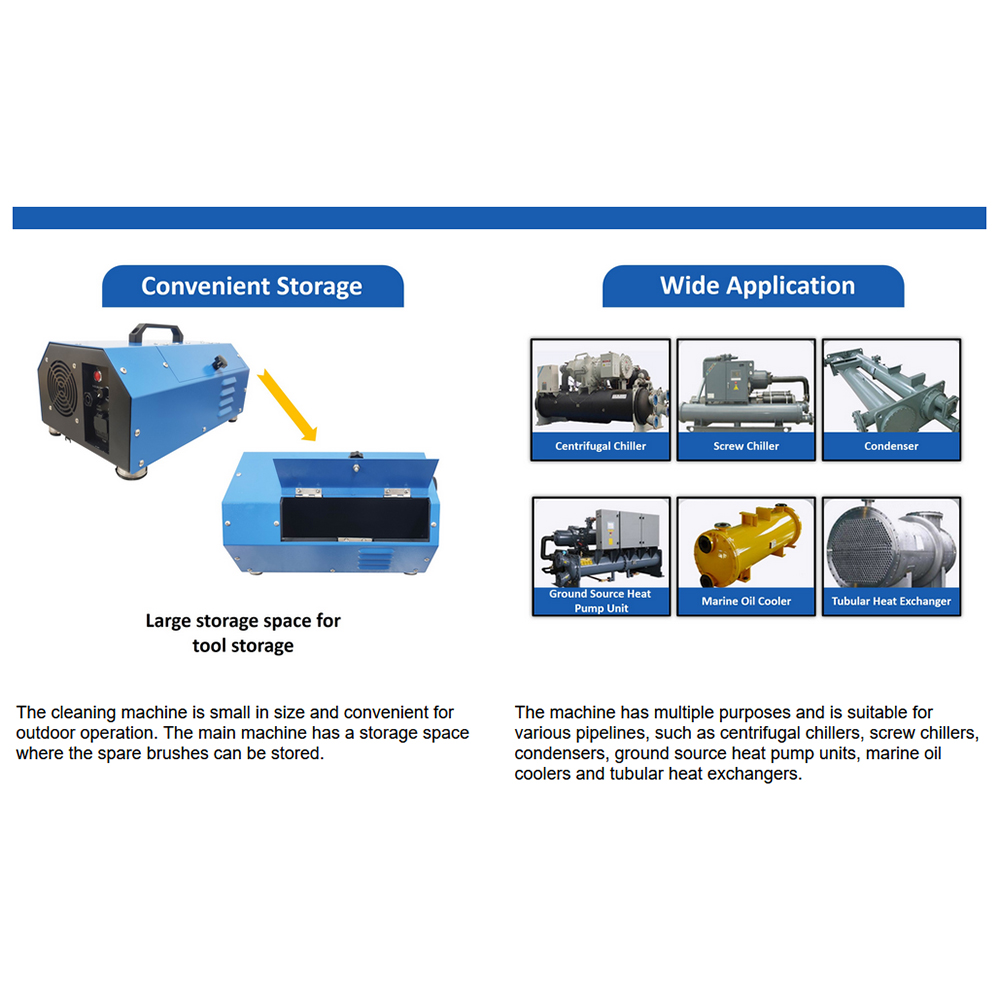

• The cleaning machine is small in size and convenient for outdoor operation. The main machine has a storage space where the spare brushes can be stored.
• The machine has multiple purposes and is suitable for various pipelines, such as centrifugal chillers, screw chillers, condensers, ground source heat pump units, marine oil coolers and tubular heat exchangers.
